DTA-00X 'Angler' Downhole Differential Pressure Transducer



Part Number: DTA - 00X



Inconel X-718 Wetted Parts

Stainless Steel Housing

3x Burst Pressure Rating



Thread: 7/16" - 20 UNF - 2A



DTA-002 = 0...2,000 psi

DTA-005 = 0...5,000 psi

DTA-008 = 0...8,000 psi

DTA-010 = 0...10,000 psi
Technical Data Connection Options
Operating temp: - 55...+   200 degrees C Two twisted pairs (4 leads) 1.8ft Teflon coated wires
- 67 ...+ 392 degrees F Red Wire +Excitation
Thermo Drift Zero: +/-0.01% FSO per C Green Wire +Signal
Thermo Drift Sense: +0.025% FSO per C White Wire -Signal
Certification: Not for hazardous areas Black Wire -Excitation
Weight: 0.1 lbs (34 g)
Material Housing: 17-4PH Stainless Steel Install Torque: 13-17Nm
Material Wetted Part: Inconel X-718 Install Thread: 7/16" - 20 UNF - 2A
Vibration: 20g, from 10 to 200 Hz O-Ring: 9.25Øx12.7x1.78
Shock: 500g at 1ms Backup O-Ring: 9.25Øx12.7x1.78
Pressure Range: 2k psi to 10k psi
Over Pressure: 1.5x to 1.8x range Precision and Scale
Burst Pressure: 3.0x range Accuracy: 0.05% full scale
Non Linearity: 0.05% full scale
Electrical Data Non Repeatability: +/- 0.03% full scale
Excitation: 5 VDC Hysteresis Error: 0.04% full scale
Bridge Resistance: 1.5k ohm to 4.5k ohm Long Term Stability: +/-0.1% full scale
Output Zero Pressure: +/- 2% full scale Error Due Shock: 0.01% full scale
Full Scale Sense 4 +/-1 mV/V
Electrical Connection: Teflon Coated Wires
Insulation Resistance: >= 500M ohm at 250V

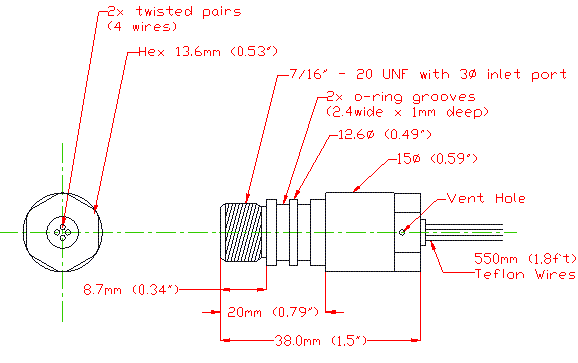

Dimensions:
