DTB-00X 'Angler' Downhole Differential Pressure Transducer |
|
Part Number: DTB - 00X
Inconel X-718 Wetted Parts Stainless Steel Housing 3x Burst Pressure Rating
Thread: 5/16" - 24 UNF - 2A
DTB-002 = 0...2,000 psi DTB-005 = 0...5,000 psi DTB-008 = 0...8,000 psi |
Technical Data | Connection Options | ||
Operating temp: | - 55...+ 200 degrees C | Two twisted pairs (4 leads) 300mm Teflon coated wires | |
- 67 ...+ 392 degrees F | Red Wire | +Excitation | |
Thermo Drift Zero: | +/-0.01% FSO per C | Green Wire | +Signal |
Thermo Drift Sense: | +0.025% FSO per C | White Wire | -Signal |
Certification: | Not for hazardous areas | Black Wire | -Excitation |
Weight: | 0.075 lbs (14 g) | ||
Material Housing: | 17-4PH Stainless Steel | Install Torque: | 6-8Nm |
Material Wetted Part: | Inconel X-718 | Install Thread: | 5/16" - 24 UNF - 2A |
Vibration: | 20g, from 10 to 200 Hz | O-Ring: | 5.5Øx1.63 |
Shock: | 500g at 1ms | ||
Pressure Range: | 2k psi to 10k psi | ||
Over Pressure: | 1.5x to 1.8x range | Precision and Scale | |
Burst Pressure: | 3.0x range | Accuracy: | 0.05% full scale |
Non Linearity: | 0.05% full scale | ||
Electrical Data | Non Repeatability: | +/- 0.025% full scale | |
Excitation: | 5 VDC | Hysteresis Error: | 0.025% full scale |
Bridge Resistance: | 1.5k ohm to 4.5k ohm | Long Term Stability: | +/-0.1% full scale |
Output Zero Pressure: | +/- 2% full scale | Error Due Shock: | 0.01% full scale |
Full Scale Sense | 4 +/-1 mV/V | ||
Electrical Connection: | Teflon Coated Wires | ||
Insulation Resistance: | >= 500M ohm at 250V |

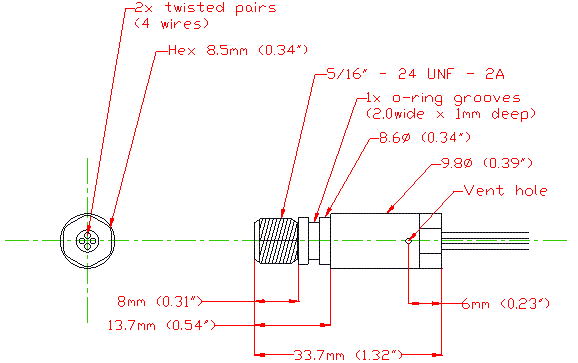

Dimensions:
