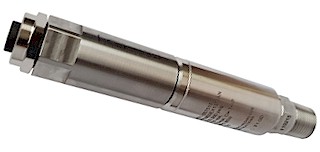

ESI-00X 'Angler' Pressure Sensors |
|
|
Part Number: ESI - 00X
Stainless Steel Housing 3x Burst Pressure Rating
Thread: 1/4" to 1/2" NPT and BSP
Any Connector |
| Technical Data | Connection Options | ||
| Operating temp: | - 20...+ 85 degrees C | Depends on connector used | |
| - 4 ...+ 185 degrees F | 2 wire 4...20mA sensor | ||
| Thermo Drift Zero: | +/-0.015% FSO per C | ||
| Thermo Drift Sense: | +0.015% FSO per C | Electrical Data | |
| Certification: | ATEX Zone 0 | Power: | 10-36V |
| Weight: | 1.1lb (0.5kg) | ||
| Material Housing: | Stainless Steel | ||
| Material Wetted Part: | SAE316 | ||
| Over Pressure: | 1.1x to 2x | ||
| Pressure Range: | 0 to 1,500 bar (20k psi) | ||
| IP Rating | IP67 | ||
| Accuracy: | 0.3% full scale | ||

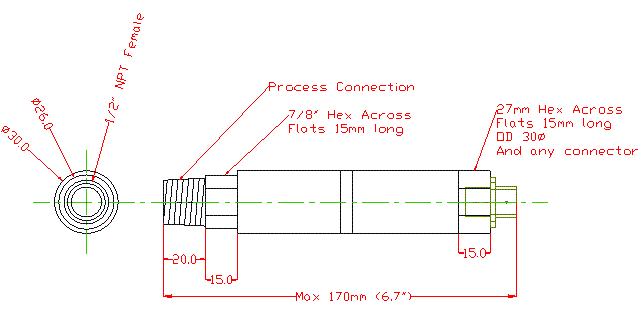

Dimensions:
