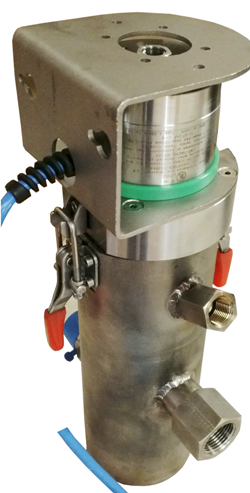

GMS-001 'Raptor' - Mud Trap Agitator |
|
|
Part Number: GMS - 001
Ex ia Certified Mud Trap Agitator
Uses pneumatic motor and a Hohner Ex ia certified encoder to monitor speed of motor to ensure ideal agitation for mud mixture.
Certification: Ex ia IIC
|
| Technical Data | Connections | |||
| Operating temp: | - 20 ...+ 80 degrees C | Cable | ||
| - 4 ...+ 140 degrees F | Mud In: | 3/4" NPT Female | ||
| Max Agitation Speed: | 2,000 rpm | Mud Out: | 1" NPT Male | |
| Current consumption: | Depends on Encoder | Air In: | 3/8" NPT Female | |
| Power supply: | 24V | Gas Out: | 3/8" NPT Female | |
| Weight: | 2.5Kg | |||
| Protection: | IP 66/67 | Output from Encoder: | ||
| Encoder Housing: | Stainless Steel | Tachometer: | 4...20mA | |
| Impeller Blade: | Stainless Steel | Incremental: | NAMUR or 5...24V | |
| Threaded Inserts: | Stainless Steel | |||
| Receptacle and Flange: | Stainless Steel | |||
| Certifications |
| Depends on encoder electronics being used. Unit can be provided with Incremental or Tachometer electronics. |
| The encoder is always IP66/X7 and depending on the electronics being used, either Ex ia IIC or IIB |
|
Mounting Instructions |
|
Mount 2x 1/4" bolts at 70.6mm apart (2.8") and hang the entire device by the two mounting holes on the bracket. Attach the mud in line via the 3/4" NPT thread and the mud out line via the 1" NPT male thread. Then attach the air in line to keep positive pressure via the 3/8" NPT thread and the gas out to the chromatograph via the other 3/8" NPT thread.
The air motor has to be powered by between 4 and 6 bar pressure, and the rpm set to the ideal speed depending on the agitation required.
The inside has several baffle layers to prevent mud from seeping up into the gas line |

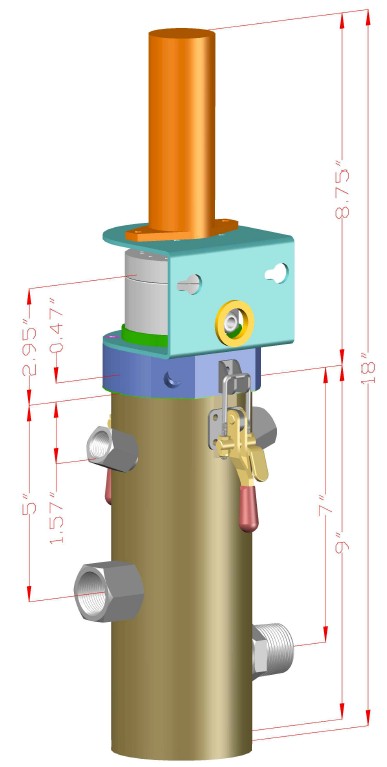

| Dimensions |
|
|
