JBE-00X 'Turtle' - Enclosure / Junction Box |
|
|
Part Number: JBE - XXX
Stainless Steel 316 or Aluminum Gland plates on any side Modular Construction allows for any size Welded Joints
With Protection Cage or Handle
IP66/X7 and IP68
Pending ATEX and IECEx

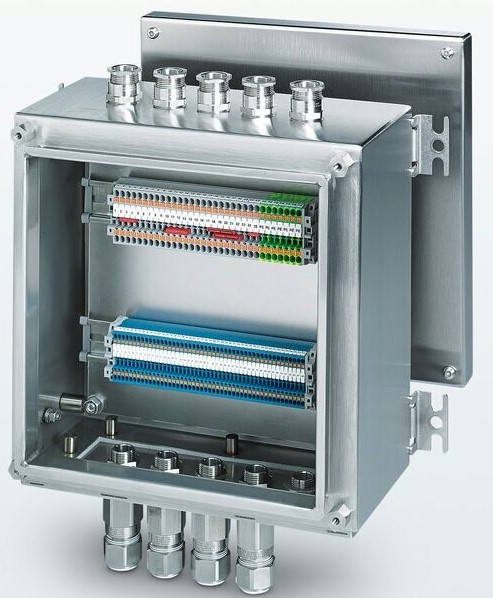

Picture is for illustration, we make various models to suit with components inside or blank, and with cable glands or blank.
|
| Technical Data | Connection Options | |
| Operating Temp: | -40...+70degrees C | Gland / Connector entries via Gland Plate or direct to |
| -40...+160 degrees F | sides as preferred. Each size and type are custom made at | |
| Material: | Stainless Steel 316 | at our facility regardless of quantity due to modular |
| or Aluminum optional | construction. | |
| IP Rating: | IP66/X7 | |
| or IP68 up to 5m / 24hr | Sizes | |
| Impact Resistance: | > than 10Nm | Any size possible from 100mm x 100mm x 100mm deep |
| Certification: | ATEX, IECEx pending | all the way up to 550mm x 800mm x 400mm deep |
| Gland Plates: | Optional | |
| Weight: | Depends on size | Advantages |
| Hinges: | Cover can be bolted on | Modular design and inhouse design and manufacturing |
| or with hinge | allows for various custom options at no extra cost. | |
| Earth: | Via welded bolt outside | |
| or via mounting bracket | Accessories | |
| Component Mounting: | Internal st. st. plate | Hohner can mount the DIN rail and any terminal blocks, |
| PLC's or any other type of equipment required by customer. | ||
| Hohner can also fit any cable glands or connectors, push | ||
| buttons, LED lights and anything else. | ||
| allowing for delivery of a complete ready to use system | ||

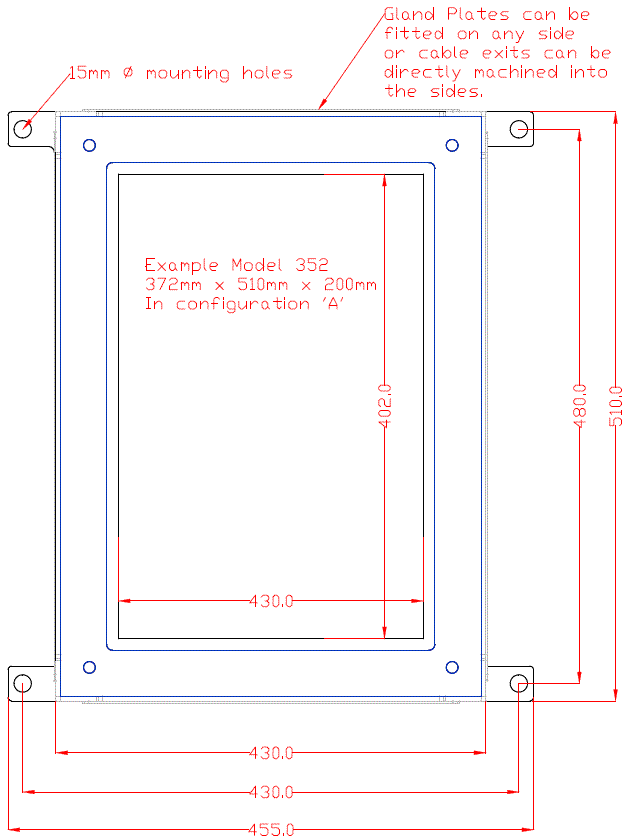

Dimensions:
Various sizes available, shown here is example of model JBE-352-A
372mm x 510mm x 200mm deep, four corner mounting holes 4mm thick
