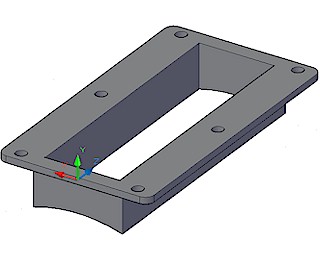

Series DLS-SBW Mild Steel Saddle/Base/Flange for DLS-001 FLow Sensor


Part Number: DLS - SBW



Saddle to get welded on to pipe




Price: Please call UK +44 1978 363 88, USA +1 905 563 4924


Technical Data
Weight: 13 lbs (4 kg)
Material: Mild Steel

Installation and User Manual

Please click here for PDF installation and user manual



Details for actual Hohner Flow Sensor

Please click here for full data sheet of our flow sensor - DLS-001

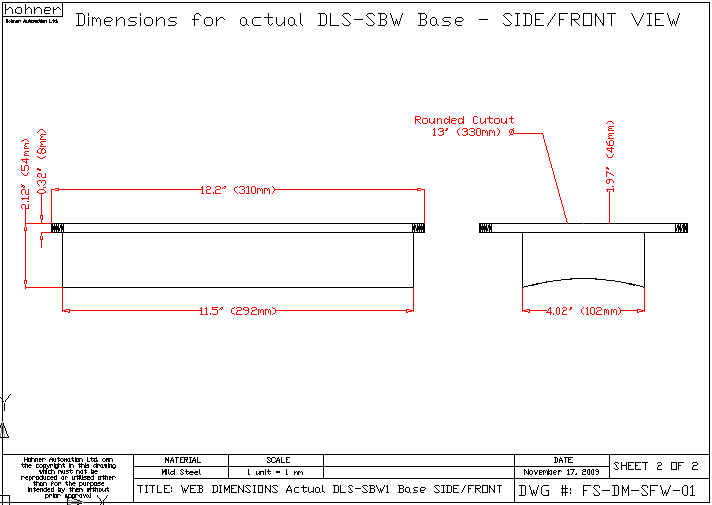

Dimensions

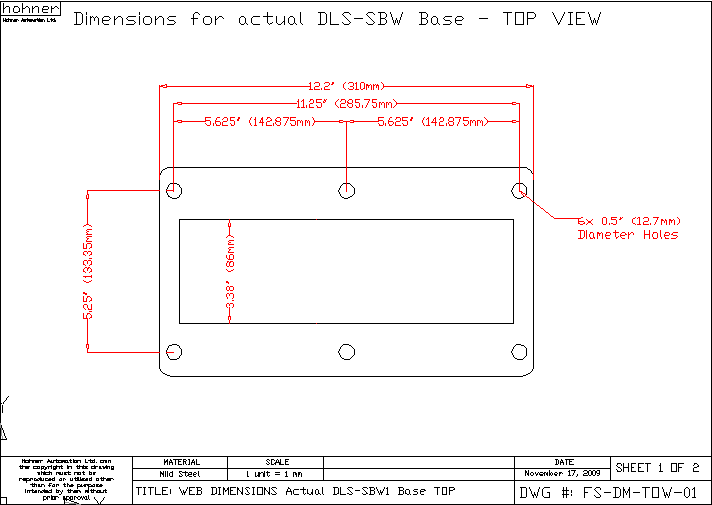

 - Top View (PDF)



 - Side View (PDF)
